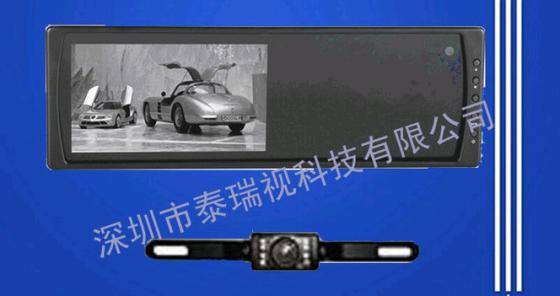

Backup System GT-60015

Image Pick-up Device ：OV7940、OV7949CMD(can choose) Lens：3.6mm／92°、2.8mm／120°(can choose) TV system ：PAL／NTSC（can choose） Effective pixels：PAL：628×586／NTSC：510×496 SensingArea：5.961mm×4.276mm Horizontal Resolution：380line Dimension：63*255mm Usable Illumination：2.26V／Lux-sec＠5600k Lens Angle ：120° Electronic Shutter Time：1／60-1／15000秒 Video Output ：CCIR／EIA（PAL／NTSC）Standard Video Signal 1.0Vp-p，75ohm Sync System：Internal Synchronization Power Supply ：DC8-12V 120mW Operation Temperature：-20℃～＋75℃（RH95％Max。） Storage Temperature：-40℃～＋85℃（RH95％Max。） Net Weight：74g Gross Weight：203g 6” Universal Rearview LCD Monitor Definition：480x234 System：PAL/NTSC Nominal voltage：9-15V Brightness : 400 Contrast: 350:1 Color: Black ,beige Power consumption: 7W MAX Way of control :Keystroke button / Remote controller Purpose: Monitor and vehicle entertainment Working environment : 20°C -+65°C Dimension: 285x 95x20 mm
